Air Inlet Valves

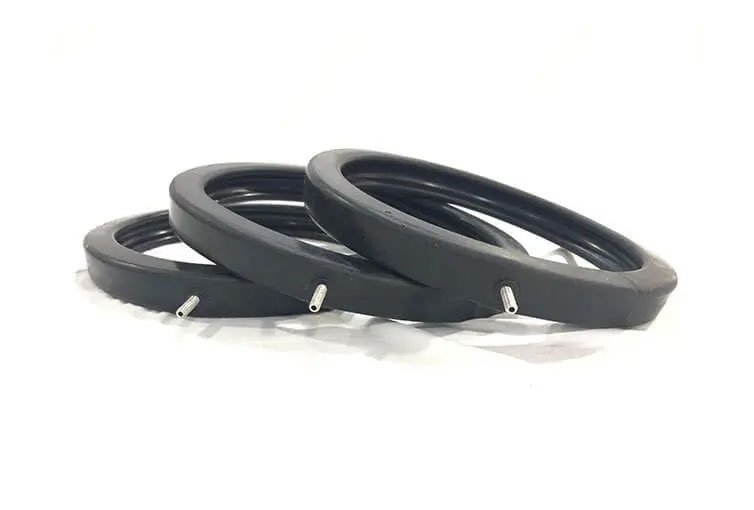

Air Inlet Valves are vital components in the design and construction of an inflatable seal. This is the point from which the medium(air/liquid/gas) flows in to the seal to account for inflation. Our standard Air Inlet Valves(AIV’s) are manufactured in brass, stainless steel, elastomers and PTFE.
All Dimensions are in mm

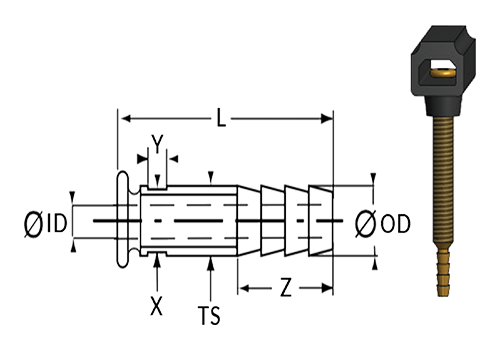

| Section | OD | ID | Thread Size | Length | Z | X x Y |
|---|---|---|---|---|---|---|
| AIV 1A | 4 | 1.5 | M6 | 30/35/40/50 | 12 | 5x6 |
| AIV 1B | 6 | 3 | M8 | 30/35/40/50/50 | 16 | 6x6 |
| AIV 1C | 8 | 5 | M10 | 40/45/50/60/70/80 | 16 | 8x8 |
| AIV 1D | 10 | 6 | M12 | 40/50/60/70/80/90 | 20 | 10x8 |
| AIV 1E | 12 | 6 | M14 | 50/60/70/80/90/100 | 20 | 11x8 |
| Search | Search | Search | Search | Search | Search | Search |
All Dimensions are in mm
| Section | ID | Thread Size | Length | X x Y |
|---|---|---|---|---|
| AIV 2A | 1.2 | M4 | 15/20/25/30/35/40/50 | 3x4 |
| AIV 2B | 3 | M6 | 15/20/25/30/35/40/50 | 5x6 |
| AIV 2C | 3 | M8 | 15/20/25/30/35/40/50/60 | 6x8 |
| AIV 2D | 3 | M10 | 20/25/30/35/40/50/60/70 | 8x8 |
| AIV 2E | 5 | M12 | 20/25/30/35/40/50/60/70 | 10x8 |
| AIV 2F | 6 | M14 | 30/35/40/50/60/70/80 | 11x8 |
| AIV 2G | 8 | M16 | 40/50/60/70/80/90/100 | 13x10 |
| Search | Search | Search | Search | Search |
All Dimensions are in mm
| Section | Thread-Size | ID | Length |
|---|---|---|---|
| AIV 3A | M4 | 1.5 | 15/20/25/30/40 |
| AIV 3B | M6 | 3.4 | 15/20/25/30/40/50 |
| AIV 3C | M8 | 3.4 | 20/25/30/40/50 |
| AIV 3D | M10 | 5.0 | 25/30/40/50/60 |
| AIV 3E | M12 | 6.8 | 30/35/40/50/60/70 |
| AIV 3F | M14 | 6.8 | 35/40/50/60/70/80 |
| AIV 3G | M16 | 8.5 | 45/50/60/70/80/90 |
| Search | Search | Search | Search |
All Dimensions are in mm
| Section | OD | ID | Length |
|---|---|---|---|
| AIV 4A | 8 | 3 | Minimum length of 200mm(in multiples of 100mm) |
| AIV 4B | 12 | 6 | |
| AIV 4C | 16 | 9 | |
| Search | Search | Search | Search |
All Dimensions are in mm

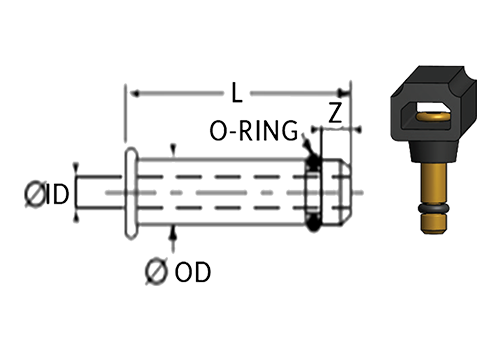

| Section | OD | ID | Z | Length |
|---|---|---|---|---|
| AIV 5A | 4 | 1.0 | 2 | 15/20/25/30/40 |
| AIV 5B | 6 | 1.5 | 2 | 15/20/25/30/35/40/50 |
| AIV 5C | 8 | 2.0 | 4 | 15/20/25/30/35/40/50 |
| AIV 5D | 4 | 4.0 | 5 | 20/25/30/35/40/50/60 |
| AIV 5E | 6 | 5.0 | 5 | 25/30/35/40/45/50/60/70 |
| AIV 5F | 8 | 6.8 | 6 | 35/40/45/50/60/70/80 |
| Search | Search | Search | Search | Search |
