WESTOWRAP™

Platinum Cured Silicone Fabric Wrapped and SS Coiled Hoses

Introduction

WESTOWRAP™

PLATINUM CURED SILICONE FABRIC WRAPPED AND SS COILED HOSES

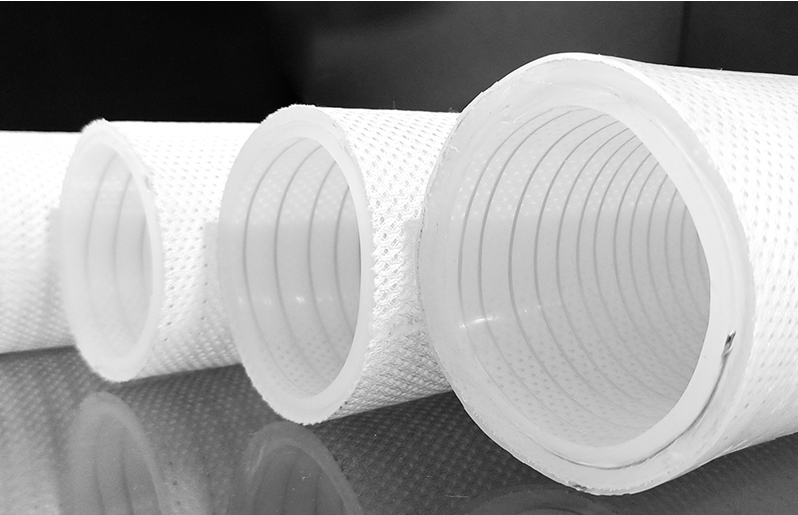

Westowrap™ is a range of platinum cured silicone fabric wrapped and SS coiled hoses. They are designed for vacuum applications and are ideal for high pressure steam transfer applications. Westowrap™ is commonly used in fluid transfer, food and beverage processing, chemical transfer for cell culture, fermentations and bioreactors.

Features

Products Benefits

Excellent kink resistance

Highly Flexible

Can be offered with SS 316L
Tri-Clover (TC) clamps (RA Value < 0.5)

standard dimensions

Available Sizes

  Part-No  Internal Diameter
(mm)
Internal Diameter
(in)
Outer Diameter
(mm)
Outer Diameter
(in)
Working Pressure*
(bar at 27°C)
Working Pressure*
(psi at 80°F)
Bursting Pressure*
(bar at 27°C)
Bursting Pressure*
(psi at 80°F)
Vacuum Pressure
(bar at 27°C)
Vacuum Pressure
(psi at 80°F)
Bending Radius
(mm)
Std Coil
Length
WW-00160.24180.71284067811310.913302m
WW-002100.39220.8723334669570.913342m
WW-003130.51250.9819276598560.913402m
WW-004190.75311.2218.5268507250.913552m
WW-005250.98371.4616232456530.913692m
WW-006321.26441.7314.5210385510.913902m
WW-007381.5501.971318934.55000.9131102m
WW-008512.01632.4811.2162273920.8121422m
WW-009632.48752.95913122.53260.8121782m
WW-010762.99883.468.3120162320.8122302m
WW-0111024.021144.4957311.21620.8123602m
SearchSearchSearchSearchSearchSearchSearchSearchSearchSearchSearchSearchSearch

* Pressure data is considered at normal room temperature of 27 C/ 80 F. Please reduce pressure values by 20% for each increase of 100 C/212 F
** The above list mentions the standard sizes of Westowrap™ Hoses available with us in-house. However, we can undertake customizations. The minimum quantity for customization orders will range anywhere between 50-200 meters, depending on the cross sectional dimension of the hose.

Technical Specifications

data Sheet

WESTOWRAP™
Platinum Cured Silicone Fabric Wrapped and SS Coiled Hoses
Color
Transparent
Compession Set (%)
0.2
Elongation (break %)
8
Gas Permeability
low
Hardness (Shore A)
70 Sh A (+/- 5)*
Material
Platinum cured silicone
Specific Gravity
1.13 – 1.17
WESTOWRAP™
Platinum Cured Silicone Fabric Wrapped and SS Coiled Hoses
Sterilization Methods
Gamma, Autoclave, ETO (on request)
Tear B, ppi
240
Temperature Range
-60 °C to 230 °C
Tensile Strength (psi)
1595
UV Resistance
Excellent
water Absorption
low

* Standard hardness for Westowrap™ Hose is 70 Sh A. However, tubes can be customized in 50 Sh A and 70 Sh A hardness as well as per client’ s requirement

Bulk Orders

If you buy large volumes (between 50 – 200 meters) of Westowrap™ Hoses,
Western Rubbers will pass on some production, cost and dispatch benefits to you like:

01

Customizing hose sizes to suit your specific application

02

Offering highly
competitive pricing

03

Customizing coil lengths to fit your process; this in turn would eliminate on-site cutting and ensure the hose is ready for use

04

Packaging hoses to suit your needs – single bag, double bag or individually packed coil lengths

05

Custom printing with indelible ink for lot traceability

06

Colored outer layer as per requirement

NOTE: The minimum order quantity for customization orders will range anywhere between 50-200 metres, depending upon the cross sectional dimension of the hose.
