Fluoroelastomer (FKM) Tubes

Food/Pharma Tubing

WESTOFLUOUR™

Introduction

WESTOFLuOUR™

FKM TUBES

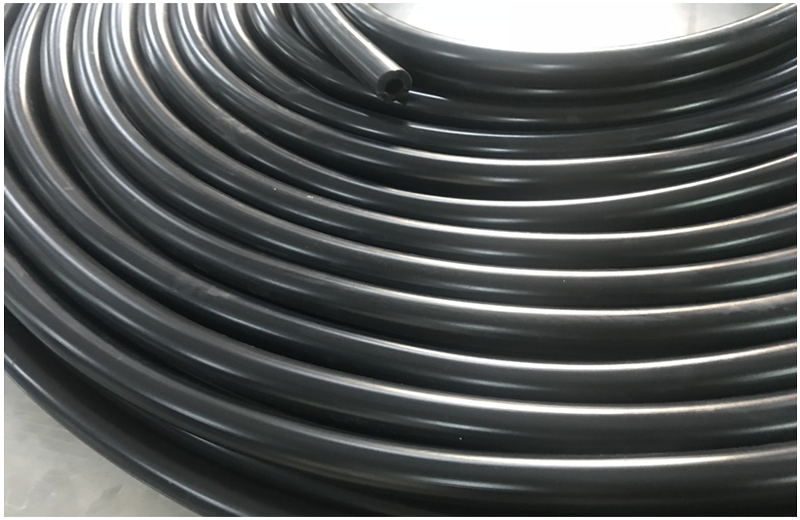

Westofluour™ is a range of chemically inert tubes made from fluoroelastomers. FKM tubes are resistant to many inorganic and organic solvents, oils and petroleum products. They are extensively used in applications such as automotive fluid transfer, peristaltic pumps – petroleum and oil transfer lines and chemical processing.

Features

Products Benefits

High temperature resistance

Excellent chemical resistance

Compatible with mild and strong acids, aliphatic and aromatic hydrocarbons

Ideal for high temperature fluid transfer

standard dimensions

Available Sizes

Part No	ID (in)	OD (in)	Wall Thickness (in)	ID (mm)	OD (mm)	Wall Thickness (mm)	Standard Coil Length
WFT-001	0.06	0.15	0.04	1.6	3.7	1.05	5m/15m/25m
WFT-002	0.08	0.16	0.04	2	4	1	5m/15m/25m
WFT-003	0.08	0.2	0.06	2	5	1.5	5m/15m/25m
WFT-004	0.02	0.15	0.06	0.5	3.7	1.6	5m/15m/25m
WFT-005	0.03	0.16	0.06	0.8	4	1.6	5m/15m/25m
WFT-006	0.05	0.17	0.06	1.2	4.4	1.6	5m/15m/25m
WFT-007	0.06	0.19	0.06	1.6	4.8	1.6	5m/15m/25m
WFT-008	0.09	0.22	0.06	2.4	5.6	1.6	5m/15m/25m
WFT-009	0.13	0.25	0.06	3.2	6.4	1.6	5m/15m/25m
WFT-010	0.19	0.31	0.06	4.8	8	1.6	5m/15m/25m
WFT-011	0.25	0.38	0.06	6.4	9.6	1.6	5m/15m/25m
WFT-012	0.31	0.44	0.06	8	11.2	1.6	5m/15m/25m
WFT-013	0.31	0.47	0.08	8	12	2	5m/15m/25m
WFT-014	0.02	0.21	0.09	0.5	5.3	2.4	5m/15m/25m
WFT-015	0.03	0.22	0.09	0.8	5.6	2.4	5m/15m/25m
WFT-016	0.06	0.25	0.09	1.6	6.4	2.4	5m/15m/25m
WFT-017	0.13	0.31	0.09	3.2	8	2.4	5m/15m/25m
WFT-018	0.19	0.38	0.09	4.8	9.6	2.4	5m/15m/25m
WFT-019	0.25	0.44	0.09	6.4	11.2	2.4	5m/15m/25m
WFT-020	0.31	0.5	0.09	8	12.8	2.4	5m/15m/25m
WFT-021	0.38	0.57	0.09	9.6	14.4	2.4	5m/15m/25m
WFT-022	0.35	0.59	0.12	9	15	3	5m/15m/25m
WFT-023	0.47	0.71	0.12	12	18	3	5m/15m/25m
WFT-024	0.19	0.44	0.13	4.8	11.2	3.2	5m/15m/25m
WFT-025	0.25	0.5	0.13	6.4	12.8	3.2	5m/15m/25m
WFT-026	0.38	0.63	0.13	9.6	16	3.2	5m/15m/25m
WFT-027	0.5	0.75	0.13	12.7	19.1	3.2	5m/15m/25m
WFT-028	0.63	0.88	0.13	15.9	22.3	3.2	5m/15m/25m
WFT-029	0.31	0.63	0.16	8	16	4	5m/15m/25m
WFT-030	0.47	0.79	0.16	12	20	4	5m/15m/25m
WFT-031	0.63	0.94	0.16	16	24	4	5m/15m/25m
WFT-032	0.38	0.76	0.19	9.6	19.2	4.8	5m/15m/25m
WFT-033	0.5	0.88	0.19	12.7	22.3	4.8	5m/15m/25m
WFT-034	0.63	1	0.19	15.9	25.5	4.8	5m/15m/25m
WFT-035	0.75	1.13	0.19	19	28.6	4.8	5m/15m/25m
WFT-036	1	1.38	0.19	25.4	35	4.8	5m/15m/25m
Search	Search	Search	Search	Search	Search	Search	Search

* Standard Coil Length For All Tubes: 5M/15M/25M
* The list above mentions the standard sizes of Westofluour™ Tubes available with us in-house. However, we can undertake customizations. The minimum order quantity for customization orders will range anywhere between 100-500 meters, depending upon the cross sectional dimension of the tube.

Technical Specification

Data Sheet

WESTOFLUOUR™	FKM Tubes
Material	FKM (Viton*)
Chemical Compatibility	Excellent (compatible with mild & strong acids, aliphatic & aromatic hydrocarbons
Color	White/Black
Compession Set (%)	35% – 45%
Elongation (break %)	2.76
Hardness (Shore A)	60 Sh A (+/- 5) \| 70 Sh A (+/- 5)*

WESTOFLUOUR™	FKM Tubes
Spallation	Low
Specific Gravity	1.8 – 1.9
Sterilization Methods	Gamma, Autoclave, ETO (On Request)
Temperature Range	-15 °C to 200 °C
Tensile Strength (psi)	853
water Absorption	low
UV Resistance	Excellent

* Note – Standard hardness for Westofluour™ Tube is 60 Sh A & 70 Sh A. However, tubes can be customized in 50 Sh A and 70 Sh A hardness as well as per client’s requirement
* Viton is a registered trademark of Du Pont

Bulk Orders

If you buy large volumes (between 50 – 200 meters) of Westofluour™ Hoses,
Western Rubbers will pass on some production, cost and dispatch benefits to you like:

01

Customizing tube sizes to suit your specific application

02

Offering highly competitive pricing

03

Customizing coil lengths to fit your process; this in turn would eliminate on-site cutting and ensure the tube is ready for use

04

Packaging tubes to suit your needs – single bag, double bag or individually packed coil lengths

05

Custom printing with indelible ink for lot traceability

NOTE: The minimum order quantity for customization orders will range anywhere between 100-500 meters, depending upon the cross sectional dimension of the tube.
