Type 2 - Fasten In Seals
Fasten-In Seals come with foot like structures for clamping the Inflatable seal in slots or grooves below. These footed seal profiles are widely used due to their ease of retention and ability to fully round out when inflated. They can be fabricated as

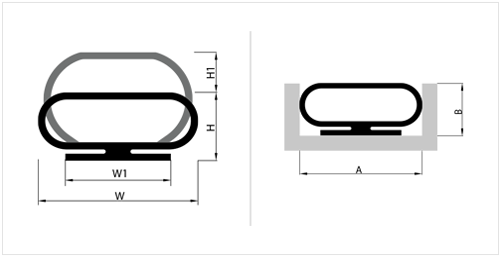

(2A) Non Reinforced Construction
| Section | Type | Width (W) mm | Width (W) in | Width (W) mm | Width (W) mm | Height (H) mm | Height (H) in | Inflation Gap (H1) mm | Inflation Gap (H1) in | Air Inlet valve (AIV) |
|---|---|---|---|---|---|---|---|---|---|---|
| WR-2B09 | S | 17.5 | 0.69 | - | - | 11.1 | 0.44 | 3.2 | 0.13 | 4A |
| WR-2B10 | S | 25.4 | 1 | - | - | 12.7 | 0.5 | 8 | 0.32 | 4A, 4B |
| WR-2B11 | S | 31.8 | 1.26 | - | - | 15.9 | 0.63 | 9.6 | 0.38 | 4A, 4B |
| WR-2B12 | S | 50.8 | 2 | - | - | 22.3 | 0.88 | 19.1 | 0.76 | 4A, 4B, 4C |
| WR-2B13 | S | 76.2 | 3 | - | - | 31.8 | 1.26 | 31.8 | 1.26 | 4B, 4C |
| WR-2B14 | S | 101.6 | 4 | - | - | 41.3 | 1.63 | 38.1 | 1.5 | 4B, 4C |
| WR-2B15 | S | 139.7 | 5.5 | - | - | 41.3 | 1.63 | 57.2 | 2.26 | 4C |
| WR-2B16 | S | 184.2 | 7.26 | - | - | 52.4 | 2.07 | 76.2 | 3 | 4C |
| WR-2B17 | C | 20 | 0.79 | 10 | 0.4 | 16.5 | 0.65 | 15 | 0.59 | 4A, 4B |
| WR-2B18 | C | 44.5 | 1.76 | 34.5 | 1.36 | 20.5 | 0.81 | 24.2 | 0.95 | 4A, 4B |
| WR-2B19 | C | 70 | 2.76 | 60 | 2.37 | 38 | 1.5 | 36.4 | 1.43 | 4B, 4C |
| WR-2B20 | C | 92.5 | 3.65 | 82.5 | 3.25 | 51 | 2.01 | 44.5 | 1.75 | 4B, 4C |
| WR-2B21 | C | 149.5 | 5.89 | 135 | 5.32 | 32 | 1.26 | 19.1 | 0.75 | 4C |
| Search | Search | Search | Search | Search | Search | Search | Search | Search | Search | Search |

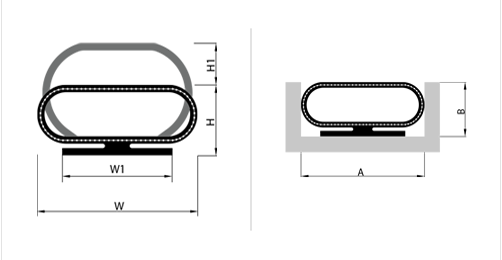

(2B) Fabric Reinforced Construction
| Section | Type | Width (W) mm | Width (W) in | Width (W) mm | Width (W) mm | Height (H) mm | Height (H) in | Inflation Gap (H1) mm | Inflation Gap (H1) in | Air Inlet Valve (AIV) |
|---|---|---|---|---|---|---|---|---|---|---|
| WR-2B09 | S | 17.5 | 0.69 | - | - | 11.1 | 0.44 | 3.2 | 0.13 | 4A |
| WR-2B10 | S | 25.4 | 1 | - | - | 12.7 | 0.5 | 8 | 0.32 | 4A, 4B |
| WR-2B11 | S | 31.8 | 1.26 | - | - | 15.9 | 0.63 | 9.6 | 0.38 | 4A, 4B |
| WR-2B12 | S | 50.8 | 2 | - | - | 22.3 | 0.88 | 19.1 | 0.76 | 4A, 4B, 4C |
| WR-2B13 | S | 76.2 | 3 | - | - | 31.8 | 1.26 | 31.8 | 1.26 | 4B, 4C |
| WR-2B14 | S | 101.6 | 4 | - | - | 41.3 | 1.63 | 38.1 | 1.5 | 4B, 4C |
| WR-2B15 | S | 139.7 | 5.5 | - | - | 41.3 | 1.63 | 57.2 | 2.26 | 4C |
| WR-2B16 | S | 184.2 | 7.26 | - | - | 52.4 | 2.07 | 76.2 | 3 | 4C |
| WR-2B17 | C | 20 | 0.79 | 10 | 0.4 | 16.5 | 0.65 | 15 | 0.59 | 4A, 4B |
| WR-2B18 | C | 44.5 | 1.76 | 34.5 | 1.36 | 20.5 | 0.81 | 24.2 | 0.95 | 4A, 4B |
| WR-2B19 | C | 70 | 2.76 | 60 | 2.37 | 38 | 1.5 | 36.4 | 1.43 | 4B, 4C |
| WR-2B20 | C | 92.5 | 3.65 | 82.5 | 3.25 | 51 | 2.01 | 44.5 | 1.75 | 4B, 4C |
| WR-2B21 | C | 149.5 | 5.89 | 135 | 5.32 | 32 | 1.26 | 19.1 | 0.75 | 4C |
| Search | Search | Search | Search | Search | Search | Search | Search | Search | Search | Search |
NOTE:
- The above seal profile type 2 are standard sizes available with us.However seal dimensions can be customized as per client specification, if required.
- The inflation gaps and AIV options are recommended by us. They can be customized as per client specification.
- Seals can be fabricated in materials like Silicone, EPDM, Neoprene, Nitrile, Natural Rubber, Viton etc.
