Type 5 - Slot Fit Seals

Table Top Slot Fit Seals
Table Top
Stud Top Slot Fit Seals
Stud Top
Flat Top Slot Fit Seals
Flat Top
Bulging Stud Top Slot Fit Seals
Bulging Stud Top

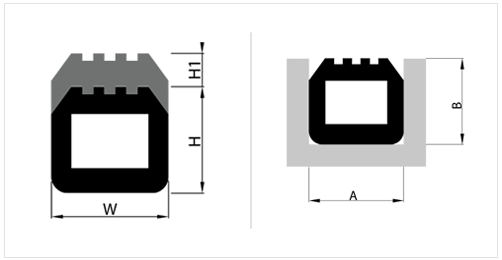

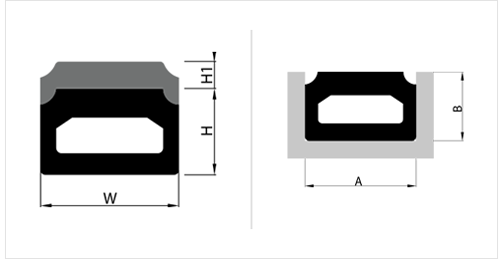

Slot Fit Seals Sizing Chart

Slot Fit Seals are preferred in heavy duty lifting or gripping applications. This profile offers higher seal life, hence is widely seen in uses where inflation and deflation cycles are very high. These seals can withstand higher pressures compared to other non-reinforced seals due to their rigid walls

SectionTypeWidth
(W) mm
Width
(W) in
Height
(H) mm
Height
(H) in
Inflation
Gap (H1) mm
Inflation
Gap (H1) in
Air Inlet
Valve (AIV)
WR-501TT70.2850.21.250.051A, 2A, 3A, 5A
WR-502TT14.50.57110.432.750.111A, 2A, 3A, 5A
WR-503ST160.63120.4730.121A, 2A, 3A, 5A
WR-504ST180.71170.674.250.171A, 2A, 3A, 5A
WR-505ST200.79200.7950.21A, 2A, 3A, 5A
WR-506ST230.91200.7950.21A, 2A, 3A, 5A
WR-507ST261.02220.875.50.221C, 2C, 3C, 5C
WR-508ST271.06180.714.50.181C, 2C, 3C, 5C
WR-509ST301.18301.187.50.31C, 2C, 3C, 5C
WR-510ST351.38321.2680.311C, 2C, 3C, 5C
WR-511ST401.57200.7950.21C, 2C, 3C, 5C
WR-512ST501.97401.57100.391D, 2D, 3D, 5D
WR-513ST752.95501.9712.50.491E, 2E, 3E, 5E
WR-514FT49.41.9422.80.912.70.51C, 2C, 3C, 5C
WR-515FT76.2336.51.4419.050.751E, 2E, 3E, 5E
WR-516FT101.6444.451.7525.412F, 2G, 3F, 3G, 5F
WR-517BST19.570.7724.70.9760.241B, 2B, 3B, 5B
WR-518BST35.41.3932.251.27100.391C, 2C, 3C, 5C
