Introduction
WESTOPRENE™
TPE TUBES
Westoprene™ is a range of highly durable TPE (Santoprene ™) tubings by Western Rubbers. These tubings are used heavily in applications such as fluid & gas transmission, peristaltic pumps, sterile fill lines and transfer of ph solvents across industries such as pharma, dairy, food, virology laboratories and more.
Features
Products Benefits
Color: Beige/Opaque
Operating temperature:
-30°C to 110°C
Resistant to fatigue, ozone, UV rays, acids, alkalis and most oils and lubricants
Last at least 10 times more
than generic tubes
standard dimensions

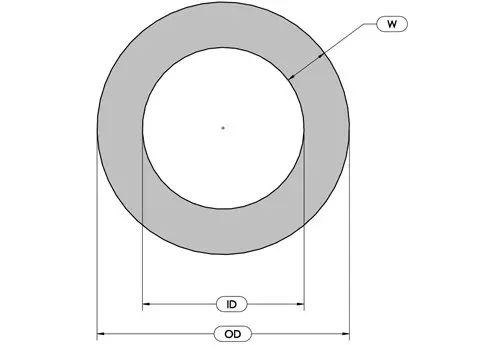

Available Sizes
| Part No. | ID (in) | OD (in) | Wall Thickness (in) | ID (mm) | OD (mm) | Wall Thickness (mm) | Standard Coil Length |
|---|---|---|---|---|---|---|---|
| WTT-001 | 0.06 | 0.15 | 0.04 | 1.6 | 3.7 | 1.05 | 5m/15m/25m |
| WTT-002 | 0.08 | 0.16 | 0.04 | 2 | 4 | 1 | 5m/15m/25m |
| WTT-003 | 0.08 | 0.2 | 0.06 | 2 | 5 | 1.5 | 5m/15m/25m |
| WTT-004 | 0.02 | 0.15 | 0.06 | 0.5 | 3.7 | 1.6 | 5m/15m/25m |
| WTT-005 | 0.03 | 0.16 | 0.06 | 0.8 | 4 | 1.6 | 5m/15m/25m |
| WTT-006 | 0.05 | 0.17 | 0.06 | 1.2 | 4.4 | 1.6 | 5m/15m/25m |
| WTT-007 | 0.06 | 0.19 | 0.06 | 1.6 | 4.8 | 1.6 | 5m/15m/25m |
| WTT-008 | 0.09 | 0.22 | 0.06 | 2.4 | 5.6 | 1.6 | 5m/15m/25m |
| WTT-009 | 0.13 | 0.25 | 0.06 | 3.2 | 6.4 | 1.6 | 5m/15m/25m |
| WTT-010 | 0.19 | 0.31 | 0.06 | 4.8 | 8 | 1.6 | 5m/15m/25m |
| WTT-011 | 0.25 | 0.38 | 0.06 | 6.4 | 9.6 | 1.6 | 5m/15m/25m |
| WTT-012 | 0.31 | 0.44 | 0.06 | 8 | 11.2 | 1.6 | 5m/15m/25m |
| WTT-013 | 0.31 | 0.47 | 0.08 | 8 | 12 | 2 | 5m/15m/25m |
| WTT-014 | 0.02 | 0.21 | 0.09 | 0.5 | 5.3 | 2.4 | 5m/15m/25m |
| WTT-015 | 0.03 | 0.22 | 0.09 | 0.8 | 5.6 | 2.4 | 5m/15m/25m |
| WTT-016 | 0.06 | 0.25 | 0.09 | 1.6 | 6.4 | 2.4 | 5m/15m/25m |
| WTT-017 | 0.13 | 0.31 | 0.09 | 3.2 | 8 | 2.4 | 5m/15m/25m |
| WTT-018 | 0.19 | 0.38 | 0.09 | 4.8 | 9.6 | 2.4 | 5m/15m/25m |
| WTT-019 | 0.25 | 0.44 | 0.09 | 6.4 | 11.2 | 2.4 | 5m/15m/25m |
| WTT-020 | 0.31 | 0.5 | 0.09 | 8 | 12.8 | 2.4 | 5m/15m/25m |
| WTT-021 | 0.38 | 0.57 | 0.09 | 9.6 | 14.4 | 2.4 | 5m/15m/25m |
| WTT-022 | 0.35 | 0.59 | 0.12 | 9 | 15 | 3 | 5m/15m/25m |
| WTT-023 | 0.47 | 0.71 | 0.12 | 12 | 18 | 3 | 5m/15m/25m |
| WTT-024 | 0.19 | 0.44 | 0.13 | 4.8 | 11.2 | 3.2 | 5m/15m/25m |
| WTT-025 | 0.25 | 0.5 | 0.13 | 6.4 | 12.8 | 3.2 | 5m/15m/25m |
| WTT-026 | 0.38 | 0.63 | 0.13 | 9.6 | 16 | 3.2 | 5m/15m/25m |
| WTT-027 | 0.5 | 0.75 | 0.13 | 12.7 | 19.1 | 3.2 | 5m/15m/25m |
| WTT-028 | 0.63 | 0.88 | 0.13 | 15.9 | 22.3 | 3.2 | 5m/15m/25m |
| WTT-029 | 0.31 | 0.63 | 0.16 | 8 | 16 | 4 | 5m/15m/25m |
| WTT-030 | 0.47 | 0.79 | 0.16 | 12 | 20 | 4 | 5m/15m/25m |
| WTT-031 | 0.63 | 0.94 | 0.16 | 16 | 24 | 4 | 5m/15m/25m |
| WTT-032 | 0.38 | 0.76 | 0.19 | 9.6 | 19.2 | 4.8 | 5m/15m/25m |
| WTT-033 | 0.5 | 0.88 | 0.19 | 12.7 | 22.3 | 4.8 | 5m/15m/25m |
| WTT-034 | 0.63 | 1 | 0.19 | 15.9 | 25.5 | 4.8 | 5m/15m/25m |
| WTT-035 | 0.75 | 1.13 | 0.19 | 19 | 28.6 | 4.8 | 5m/15m/25m |
| WTT-036 | 1 | 1.38 | 0.19 | 25.4 | 35 | 4.8 | 5m/15m/25m |
| Search | Search | Search | Search | Search | Search | Search | Search |
*Standard Coil Length For All Tubes: 5M/15M/25M
**The above list mentions the standard sizes of Westoprene Tubes available with us in-house. However, we can undertake customizations. The minimum quantity for customization orders will range anywhere between 100-500 meters, depending on the cross sectional dimension of the tube.
Technical Specifications
data Sheet
WESTOPRENE™ | TPE Tubes |
|---|---|
Color | Beige/Opaque |
Compession Set (%) | 18 – 25% |
Elongation (break %) | 4.5 |
Hardness (Shore A) | 60 Sh A (+/-5)* | 70 Sh A (+/-5)* |
Material | Thermoplastic Elastomer (TPE)
|
Spallation | Low |
WESTOPRENE™ | TPE Tubes |
|---|---|
Specific Gravity | 0.97 |
Sterilization Methods | Gamma, Autoclave, ETO (On Request) |
Temperature Range | -30 °C to 110 °C |
Tensile Strength (psi) | 1020 |
UV Resistance | Excellent |
water Absorption | low |
* Standard hardness for Westoprene™ Tube is 60 Sh A & 70 Sh A. However, tubes can be customized in 50 Sh A and 70 Sh A hardness as well as per client’s requirement
Bulk Orders
If you buy large volumes (between 100 – 500 meters) of Westoprene™ Tubes,
Western Rubbers will pass on some production, cost and dispatch benefits to you like:
01
Customizing tube sizes to suit your specific application
02
Offering highly competitive pricing
03
Customizing coil lengths to fit your process; this in turn would eliminate on-site cutting and ensure the tube is ready for use
04
Packaging tubes to suit your needs – single bag, double bag or individually packed coil lengths
05
Custom printing with indelible ink for lot traceability
NOTE: The minimum order quantity for customization orders will range anywhere between 100-500 meters, depending upon the cross sectional dimention of the tube.
