Rubber Washer

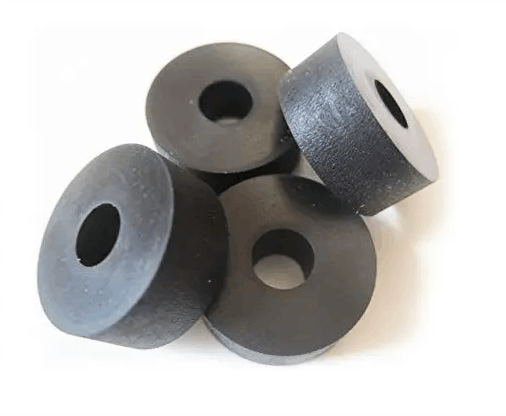

Rubber Washers are seals made of rubber used for sealing two mating parts and eliminating vibration and sound between the parts. Rubber washers ensure tighter sealing as well as avoid corrosion when exposed to a humid atmosphere or where the application is in contact with water or corrosive fluids as compared to metal washers. Western Rubbers manufactures
premium grade rubber washers that ensure the best functionality and quality. The washers
provided by Western Rubbers have high shock absorbing rates which ensure silent operation especially in devices having high vibration rates.

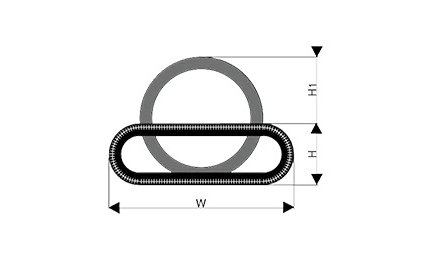

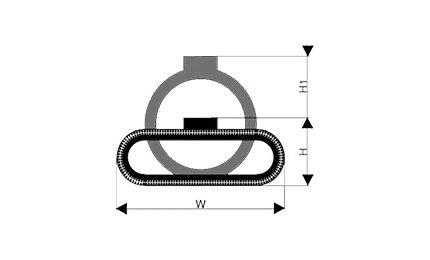

(1B) FABRIC REINFORCED CONSTRUCTION

oblong

ring

Standard Dimensions

Sizing Chart

PROFILE CODE	Type	Width (W)	Height (H)	H1	MAX. INTERNAL PRESSURE (in bar)	U-CHANNEL A	U-CHANNEL B
IN-1B16	D	63.5	50	25.4	10	65.7	51.6
IN-1B01	O	19.6	9.6	3.2	6	20.8	10.3
IN-1B04	O	38.1	12.7	12.7	6	39.6	13.5
IN-1B14	O	76.2	19	13.8	10	78.4	20
IN-1B07	O	101.6	25.4	44.5	10	103.8	26.7

NOTE:

The above seal profile type 4 are standard sizes available with us. However seal dimensions can be customized as per client specification, if required.
The inflation gaps and AIV options are recommended by us. They can be customized as per client specifications
Seals can be fabricated in materials like Silicone, EPDM, Neoprene, Nitrile, Natural Rubber, Viton etc..

Standard Dimensions

Available Sizes

Part no	OD	ID	Thickness
WA-001	7	3	1 1/2
WA-002	8	3	2
WA-003	8.4	5.3	3
WA-004	9	3.5	2
WA-005	10	5	2
WA-006	10	6	1
WA-007	10	7	1
WA-008	10.5	4.3	1.5
WA-009	11	3	3
WA-010	11	3.5	4
WA-011	11	5.5	1.5
WA-012	11.5	1	1.5
WA-013	12	4	1.5
WA-014	12	4	3
WA-015	12	5	1.5
WA-016	12	5	2
WA-017	12	5	4
WA-018	12	6	2
WA-019	12.7	6.4	1.5
WA-020	12.7	8	1.5
WA-021	13.4	8	1
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-022	14	4	1
WA-023	14	4	1.3
WA-024	14	4	3
WA-025	14	7	4
WA-026	14.5	10	4
WA-027	15	4	2
WA-028	15	6	2
WA-029	15	10	2
WA-030	16	2	2.5
WA-031	16	4	3
WA-032	16	5.5	1.5
WA-033	16	5.5	3
WA-034	16	7.2	3
WA-035	16	10	1
WA-036	16	10	1.5
WA-037	16	10	2
WA-038	17	6.5	1.5
WA-039	17	6.5	2
WA-040	17	9	5
WA-041	17.3	6.7	3
WA-042	18	6.3	3
WA-043	18	8	2
WA-044	18	9.3	3
WA-045	18	12	1
WA-046	18	12	1.5
WA-047	18	12	2
WA-048	18	12	3
WA-049	18.5	7	2.5
WA-050	18.5	9	2
WA-051	18.5	9	4
WA-052	19	4.8	4
WA-053	19	6	1
WA-054	19	9.5	1.8
WA-055	19	9.5	2
WA-056	19	10.3	3
WA-057	19	10.5	1.6
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-058	20	4	1
WA-059	20	4	3
WA-060	20	4	5
WA-061	20	6	2
WA-062	20	6	4
WA-063	20	6.5	2.5
WA-064	20	8	2
WA-065	20	8	2
WA-066	20	10	1.5
WA-067	20	10.5	3
WA-068	20	12	1
WA-069	20	12.7	2.5
WA-070	20	12.7	5
WA-071	21	12	4
WA-072	21	12.5	4
WA-073	21.5	5	1.5
WA-074	21.5	5	3
WA-075	22	4	3
WA-076	22	9.5	8
WA-077	22	15	1
WA-078	22	16	3
WA-079	23	9	5
WA-080	23	16	1
WA-081	23.5	20	1
WA-082	24	10.5	1
WA-083	24	11	3
WA-084	24	12.5	1
WA-085	24	13.5	1
WA-086	24	17	2
WA-087	25	5.3	5
WA-088	25	6.5	1
WA-089	25	6.5	2.5
WA-090	25	7	3
WA-091	25	7.5	9
WA-092	25	7.5	10
WA-093	25	8	1
WA-094	25	8	3
WA-095	25	8	5
WA-096	25	8.5	1.5
WA-097	25	8.5	2
WA-098	25	10	1
WA-099	25	10	3
WA-100	25	12	1.5
WA-101	25	15	1
WA-102	25	15	1.5
WA-103	25	15	2
WA-104	25	15	2.5
WA-105	25	18.3	3
WA-106	25	20	1.5
WA-107	25.4	12	2
WA-108	25.5	13	1.8
WA-109	25.5	13	2
WA-110	26	7	3
WA-111	26	20	3
WA-112	27	17	4
WA-113	27	20.5	1
WA-114	28	11	3
WA-115	29	16	4
WA-116	29	20	5
WA-117	29	20	7
WA-118	29	23	2
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-119	30	6.4	6
WA-120	30	10	2
WA-121	30	10	5
WA-122	30	10.5	3
WA-123	30	10.5	6
WA-124	30	12	3
WA-125	30	15	1
WA-126	30	17	4
WA-127	30	20	1
WA-128	30	20	3
WA-129	30	20.5	1
WA-130	30	23	2
WA-131	31.8	16.7	6
WA-132	31.8	24	1
WA-133	31.8	24	2
WA-134	31.8	24	4.5
WA-135	32	12	3
WA-136	32	16	3.2
WA-137	32	19	6.5
WA-138	32	20	2
WA-139	32	25	2
WA-140	33	8	4
WA-141	33	9	6
WA-142	33	23	5
WA-143	34	25	3
WA-144	34	30	3
WA-145	35	5	3
WA-146	35	6	5
WA-147	35	12	10
WA-148	35	16	5
WA-149	35	21	2
WA-150	35	22	6
WA-151	35	24	10
WA-152	35	25	5
WA-153	35	30	3
WA-154	36	24	3
WA-155	36	25	3
WA-156	36	29.3	3
WA-157	36.5	20.8	2.5
WA-158	37	12	3
WA-159	37	13	1
WA-160	37	20	6
WA-161	37	21	3
WA-162	38	3	3
WA-163	38	27	1
WA-164	38	28	3
WA-165	38	32	1
WA-166	38.1	20.7	3
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-167	40	3	4
WA-168	40	8	1
WA-169	40	8	4
WA-170	40	8	6
WA-171	40	10	3
WA-172	40	18	1
WA-173	40	22	3
WA-174	40	23	3
WA-175	41	14	3
WA-176	42	4	2
WA-177	42	4	3
WA-178	42	28	3
WA-179	45	12	3
WA-180	45	15	2
WA-181	45	18	3
WA-182	45	21	2
WA-183	45	25	5
WA-184	45	32	3
WA-185	45	34	3
WA-186	45	35	6
WA-187	46	27.5	6.2
WA-188	46	34.5	1
WA-189	46	36	3
WA-190	47	33	6
WA-191	48	10	2
WA-192	48	16	3
WA-193	49	16	2
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-194	50	8	5
WA-195	50	9.5	6
WA-196	50	11	1
WA-197	50	11	3
WA-198	50	17	2
WA-199	50	20	1
WA-200	50	20	3
WA-201	50	32	1.5
WA-202	50	32	3
WA-203	51	43	3
WA-204	51	44.3	3
WA-205	52	15	2
WA-206	53	24.5	3
WA-207	55	8	3
WA-208	55	28	4
WA-209	55	35	6
WA-210	60	10	3
WA-211	60	16	2
WA-212	60	32	1.5
WA-213	60	40	2
WA-214	62	33	1
WA-215	63	23	6
WA-216	63	33	1
WA-217	63	33	3
WA-218	63	43	6
WA-219	64	45	1.5
WA-220	64.2	44.5	6
WA-221	64.2	44.5	12
Search	Search	Search	Search

Part no	OD	ID	Thickness
WA-222	65	40	3
WA-223	65	48	4
WA-224	66	20.7	6.3
WA-225	66	59.3	3
WA-226	69	54.5	1
WA-227	70	40	4
WA-228	70	55	3
WA-229	73	55	3
WA-230	75	12	2
WA-231	75	31	4
WA-232	76	36	3
WA-233	80	31	3
WA-234	82.5	70	1.4
WA-235	85	33	4
WA-236	90	70	1
WA-237	90	70	2
WA-238	90	77	4
WA-239	100	85	3
WA-240	122	50.8	3
WA-241	122	70	3
WA-242	140	120	3
WA-243	150	65	10
Search	Search	Search	Search
